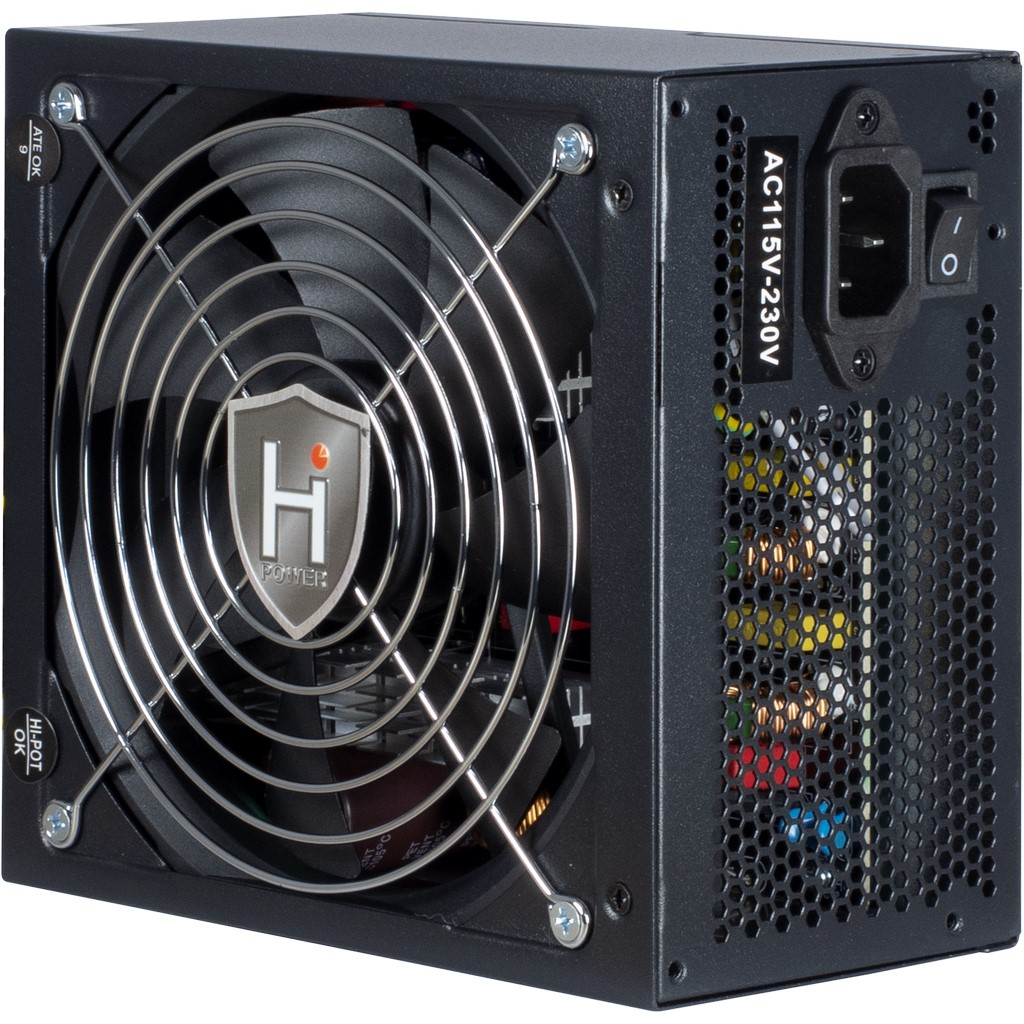

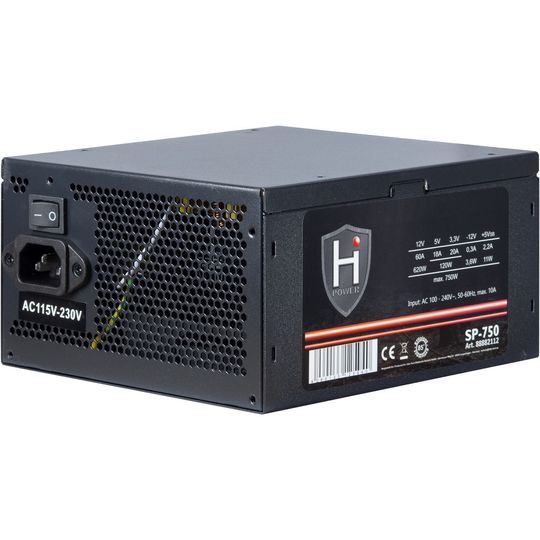

Aflgjafi Inter Tech 750W HIPOWER SP-750
Inter-Tech HIPOWER SP-750, 750 W, 100 - 240 V, 50 - 60 Hz, 10 A, Active, 120 W |
|
| Power | |
|---|---|
| Total power: | 750 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Input current: | 10 A |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+3.3V): | 120 W |
| Combined power (+12V): | 620 W |
| Combined power (+5V): | 120 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5Vsb): | 11 W |
| Max output current (+3.3V): | 20 A |
| Max output current (+12V): | 60 A |
| Max output current (+5V): | 18 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 2.2 A |
| Efficiency: | 85% |
| Power protection features: | Over power, Over voltage, Short circuit |
| Ports & interfaces | |
|---|---|
| Motherboard power connector: | 20+4 pin ATX |
| Motherboard power cable length: | 50 cm |
| Number of SATA power connectors: | 6 |
| Peripheral (Molex) power connectors (4-pin): | 6 |
| PCI Express power connectors (6+2 pin): | 2 |
| PCI Express power cable length: | 50 cm |
| CPU power connector (4+4 pin): | Yes |
| CPU power cable length: | 50 cm |
| ATX power connector (20+4 pin): | Yes |
| Floppy drive power connector: | 1 |
| Floppy disk drive connector: | Yes |
| PCI Express connector: | Yes |
| Performance | |
|---|---|
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| ATX version: | 2.4 |
| Noise level: | 35 dB |
| Design | |
|---|---|
| Product colour: | Black |
| Cooling type: | Active |
| Fan diameter: | 14 cm |
| Number of fans: | 1 fan(s) |
| Fan location: | Top |
| On/off switch: | Yes |
| Packaging content | |
|---|---|
| Cables included: | AC |
| Weight & dimensions | |
|---|---|
| Width: | 150 mm |
| Depth: | 160 mm |
| Height: | 86 mm |
| Weight: | 1.48 kg |
| Packaging data | |
|---|---|
| Package width: | 250 mm |
| Package depth: | 98 mm |
| Package height: | 185 mm |
| Package weight: | 1.82 kg |
| Package type: | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code: | 84733020 |
